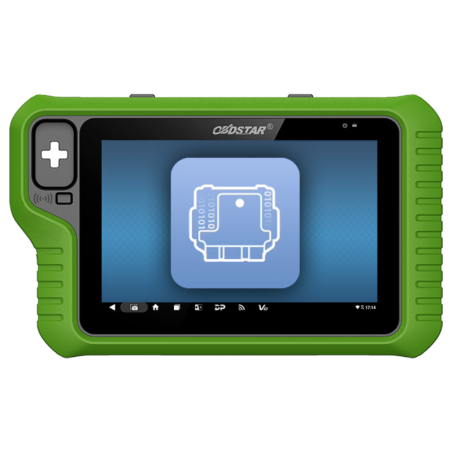

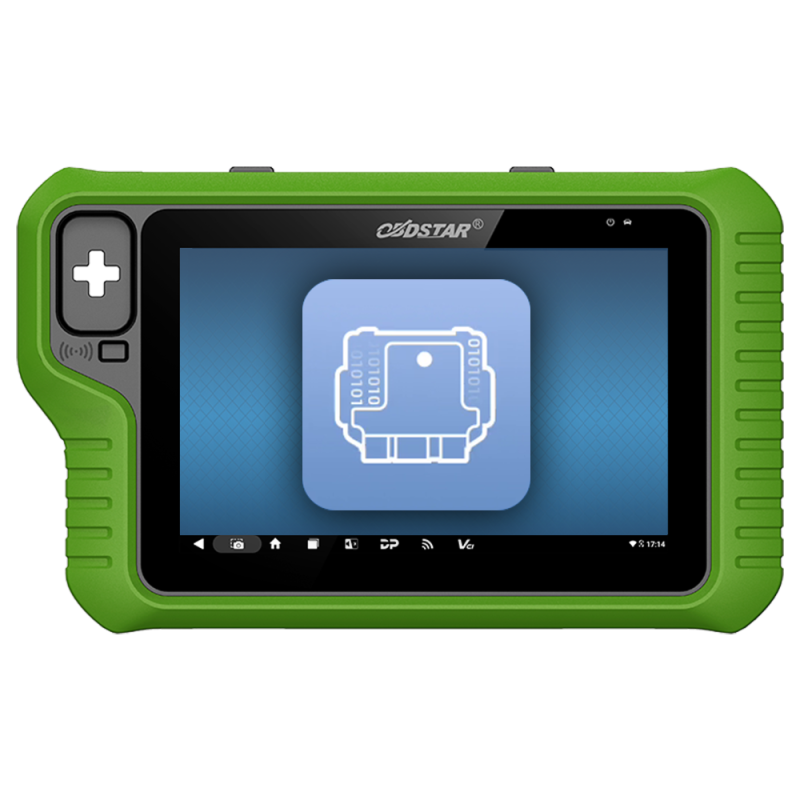

OBDSTAR KEYMASTER G3 | Activation ECU Flasher - DC706

General Overview

The OBDSTAR DC706 ECU Tool is designed for the management and programming of vehicle electronic control units (ECU).
It supports ECM, TCM, and body/other system modules for cloning, reprogramming, and diagnostics.

With OBD or bench mode, it enables data reading/writing, full cloning, ECU reset (Virgin), ECU recovery, and much more.
It is a powerful and intuitive solution for workshops specializing in automotive and motorcycle electronics.

Key Functions

• ECU Cloning / via OBD or Bench

• ECM cloning (cars): Bosch, Continental, Delphi, Denso, Magneti Marelli, Siemens…

• ECM cloning (motorcycles): Bosch, Delphi, EFI…

• TCM cloning: Ac Delco, Bosch, Continental, Getrag, GM, Kefico, Siemens, Temic, ZF…

• Body/Other module cloning: FCA, FIAT, FORD, GM/Opel, Land Rover/Jaguar, PSA, Smart, Volvo…

Supported ECU Manufacturers

ACDELCO, ALPS, ATE, AUTOLIV, BOSCH, CONTINENTAL, DELPHI, DENSO, EFI, GETRAG, GM, KEFICO, LEAR, MAGNETI MARELLI, SIEMENS, TEMIC, VALEO, VISTEON, YAZAKI, ZF…

Supported Brands

🚗 Cars

Aston Martin, BMW, FCA (Alfa Romeo, Chrysler, Dodge, Fiat…), Ford/Lincoln, GM/Opel, Hyundai/Kia, Land Rover/Jaguar, Maserati, Mazda, Mitsubishi, Nissan, PSA, Smart, Subaru, Suzuki, Volvo, VW/Audi/Seat/Skoda…

🏍️ Motorcycles

Aprilia, BRP, CFMoto, Derbi, Gilera, Guzzi, Italjet, Peugeot, Piaggio, Vespa, QJBenelli…

Advanced Functions

• Read/Write Eeprom, Dflash, Pflash, Map

• Reset ECU (Virgin)

• Mileage calibration

• Read IMMO PIN code

• ECU recovery

• Supports 1810+ ECM types (P003 adapter required for some functions)

• Supports 450+ TCM types

• Supports 160+ Body/Other ECU types (Airbag, BCM, BSI, EPS, Keyless, KVM, RFA, SAM…)

• Supports VW DQXXX TCM mileage calibration

• Motorcycle ECU cloning: Delphi MT05/MT05.2/MT05.3, BRP ME17.8.5, Piaggio MIU G4…

• Intelligent search by brand, model, part number, MCU type

• Automatic ECU identification

• Strong technical help files and evolving database

• Available in OBD and Bench mode

Accessories & Configurations

Available in 7 configurations
Includes adapters MP001, P003, and P003+ depending on the version.

FAQ – Frequently Asked Questions

Q: Where can I find the list of supported functions?
A: Download the “Function Manual” from the product page on our official website. Updates are synchronized monthly.

Q: Is it possible to activate IMMO, Cluster Calibration, or Airbag Reset functions?
A: No, the DC706 only supports ECU Flasher functions.

Q: Does the device require an annual subscription fee?
A: Free updates are provided for the first year from registration. Starting from the second year, an annual subscription fee applies.

Q: What is the difference between MP001, P003+, and P003 adapters?
A: MP001 covers all P003+ functions, and P003+ covers all P003 functions. Simos18 ECU cloning requires MP001.

Q: Does the DC706 support multiple languages?
A: Currently, only English is supported.
