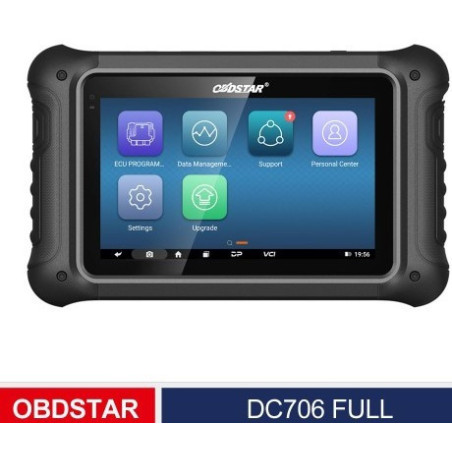

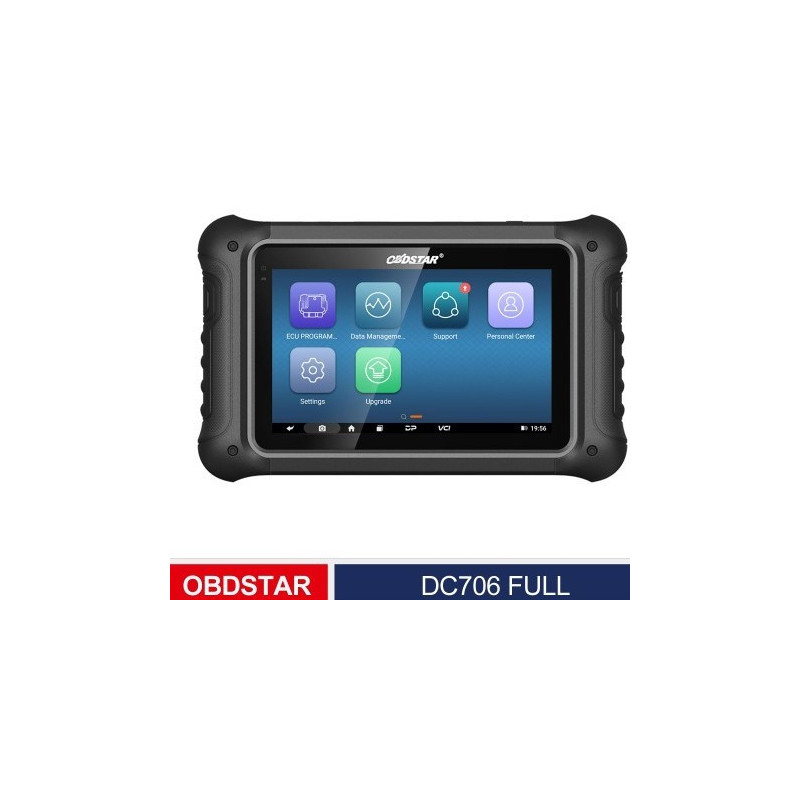

OBDSTAR DC706 FULL Tablet – Complete Version for Cars and Motorcycles | ECM, TCM, BODY Cloning via OBD or Bench Mode

OBDSTAR DC706 – Professional ECU Cloning Tablet for Cars and Motorcycles | Basic Version

The OBDSTAR DC706 tablet, distributed by Keyfirst, is an advanced diagnostic and programming tool designed for ECU cloning via OBD or bench mode. It supports engine control units (ECM), transmission modules (TCM), and many other systems (BCM, AIRBAG, etc.) across a wide range of cars and motorcycles.
It comes with one year of free updates and allows reading, writing, resetting, calibrating, and cloning ECUs with precision and ease.

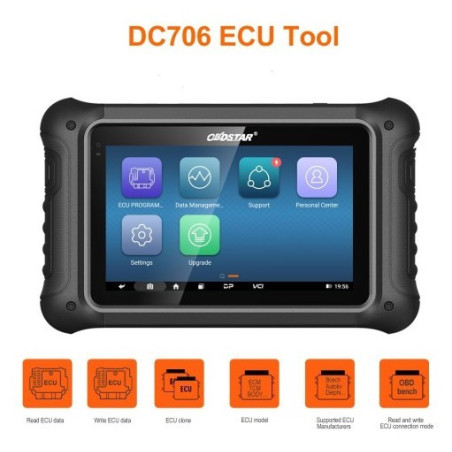

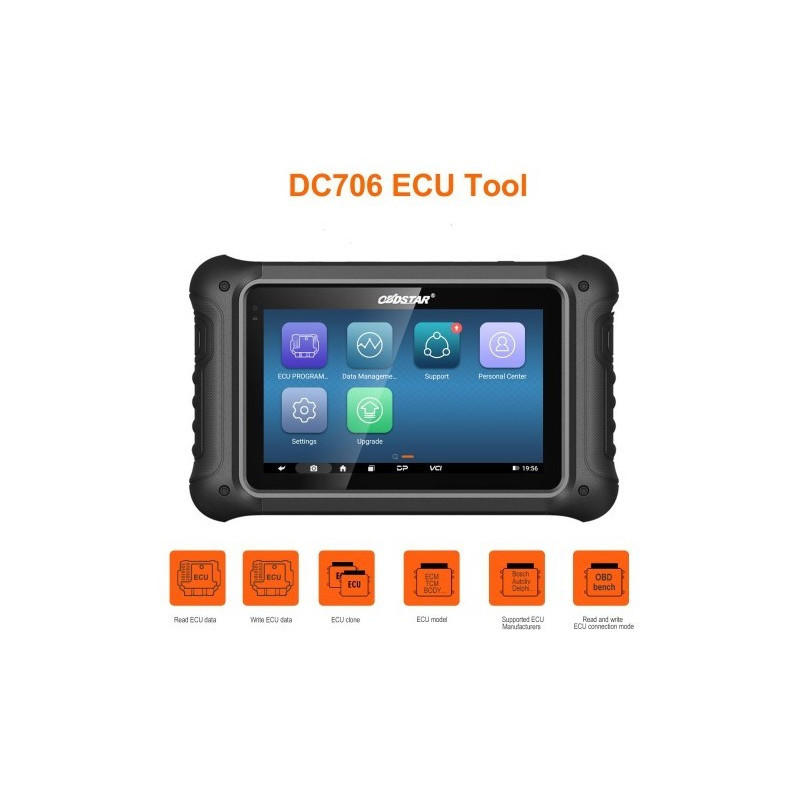

Key Features

• ECU cloning via OBD or bench (test bench connection)

• Read and write EEPROM, Dflash, Pflash, MAP

• ECU reset (Virgin mode)

• Read IMMO PIN code

• Mileage calibration

• Recovery of damaged ECUs

• Smart search by brand, model, part number or ECU manufacturer

• Automatic ECU identification

• Built-in technical support files

• Works in both OBD and bench mode

Supported Systems

ECM (Engine Control Modules)
Supports over 200 types including Bosch, Continental, Delphi, Denso, Magneti Marelli, Siemens.

TCM (Transmission Control Modules)
Supports a wide range of TCMs, including VW DQXXX models with mileage calibration.

Body and Other ECU Modules
Over 100 types supported: BCM, BSI, AIRBAG, CEM, EPS, RFA, KVM, SAM, DIM, DDM, PDM, and more.

Motorcycles

• ECU cloning for Delphi MT05, MT05.2, MT05.3

• BRP ME17.8.5 ECU (requires P003 adapter)

• Piaggio MIU G4 (M4G1) ECU support

Supported ECU Manufacturers

ALPS, Autoliv, Bosch, Continental, Delphi, Denso, Johnson Controls, Lear, Magneti Marelli, Siemens, Temic, Valeo

Supported Vehicle Brands

Cars: Aston Martin, BMW, FCA (Fiat, Alfa Romeo, Chrysler, Dodge), Ford, GM, Hyundai, Kia, Jaguar, Land Rover, Mazda, Mitsubishi, Nissan, Opel, PSA (Peugeot, Citroën), Smart, Subaru, Suzuki, Volvo, VW, Audi, Seat, Skoda

Motorcycles: Aprilia, BRP, CFMOTO, Derbi, Gilera, Guzzi, Peugeot, Piaggio, QJ Benelli, Vespa

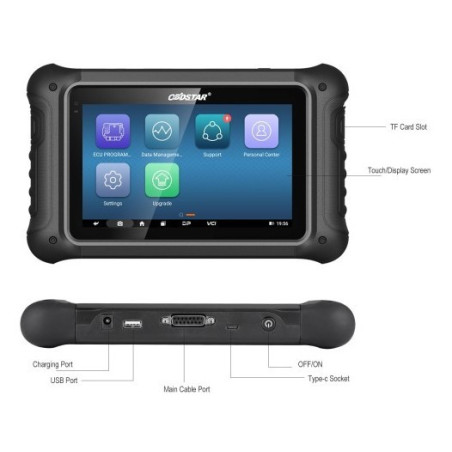

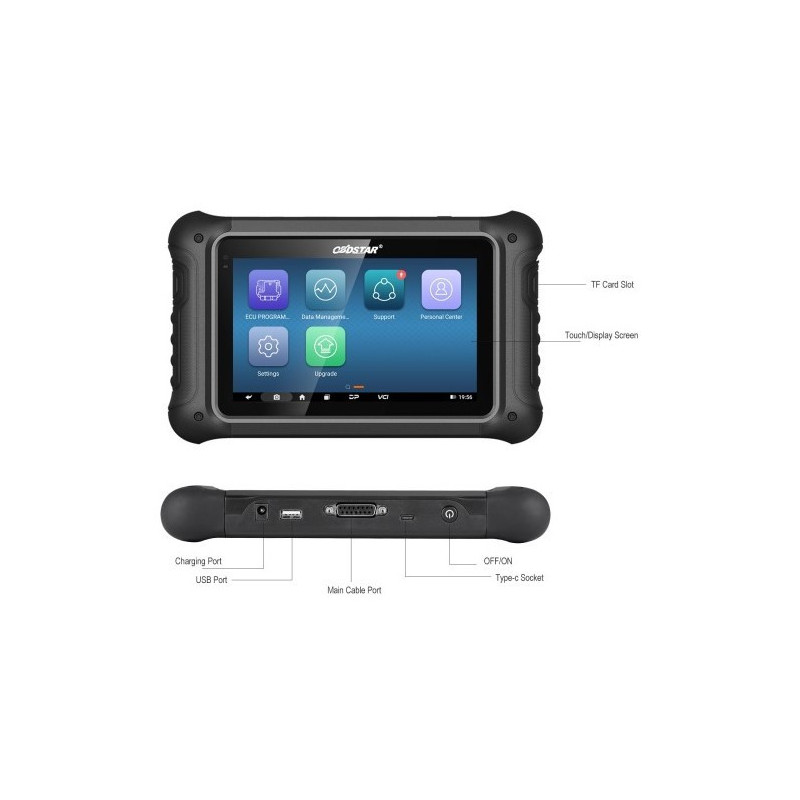

Technical Specifications

• Operating system: Android 5.1.1

• CPU: RK3128 quad-core ARM Cortex A7

• Internal storage: 16 GB

• Expandable memory: microSD card up to 32 GB

• Display: 7-inch capacitive touchscreen (1024 x 600 resolution)

• Battery: 3700 mAh rechargeable lithium polymer

• Connectivity: Wi-Fi

• Operating temperature: -20°C to 55°C

• Storage temperature: -20°C to 70°C

• Dimensions: 243 x 148 x 36 mm

• Weight: approx. 1.3 kg
