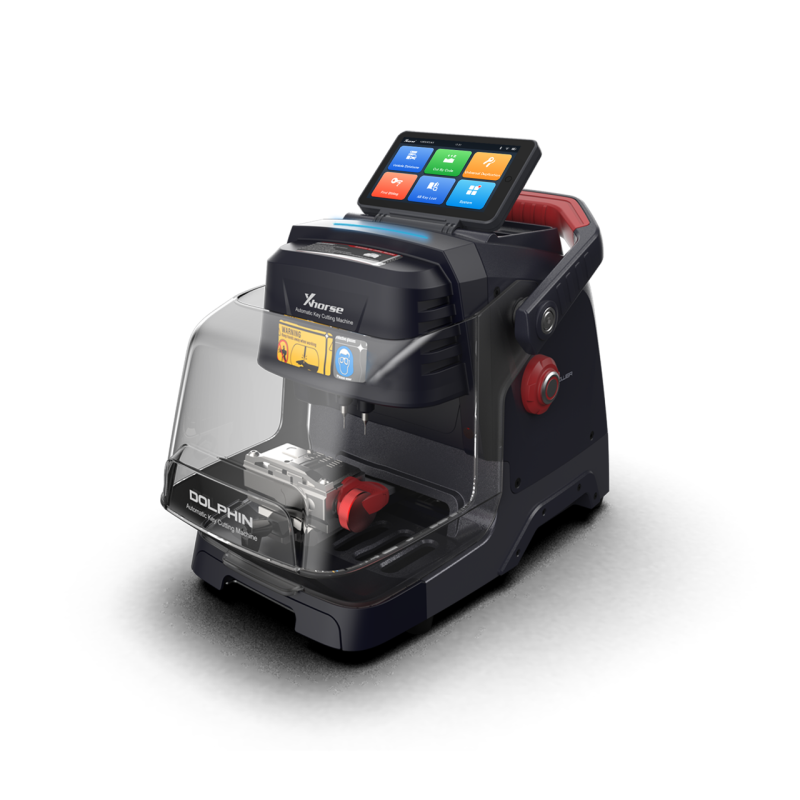

XHORSE Dolphin XP005L Auto Key Cutting Machine Touch Screen XP05L1GL | XP0501LEN

🛠️ Portable Smart Key Cutting Machine – Dolphin II -XP05L1GL

The XHORSE Dolphin XP-005L is the next-generation smart key cutting machine, an upgrade of the XP-005. Featuring a 5" HD touchscreen, transparent protective shield, intelligent light indicators, and built-in lithium battery, this machine is ideal for locksmiths working both in-shop and roadside.

✅ Key Features:

• 5-inch adjustable HD touchscreen

• Intelligent RGB work status lights

• Transparent safety shield

• Built-in lithium battery for cordless operation

• Wi-Fi & Bluetooth support

• Multi-function: all keys lost, key duplication, optical recognition

• Massive database: 100+ car brands, 2,000 models, 20,000 key profiles

• Compatible with Key Tool Plus & VVDI MB Tool (1 free MB token/day)

⚙️ Technical Specifications:

• Touchscreen: 1280x720, capacitive, adjustable angle

• Weight: 13 kg

• Language: English (machine), multilingual app

• Clamp: M5 standard (M3 & M4 optional)

• Connectivity: Wi-Fi and Bluetooth

📦 Package Includes:

• 1x Dolphin XP-005L Machine

• 1x M5 Clamp

• Optional: M3 & M4 Clamps

• 1.5mm + 2.5mm cutters, 1x probe

• Hex keys (2mm, 3mm, 4mm, 6mm)

• 1x Protective shield

• Power adapter + various power cords (EU/UK/US/CN)

• 1x Brush

• 1x User manual + Certificate

🧰 Installation Instructions

1. Cutter & Probe Installation

• Insert the cutter/probe fully into its mounting hole.

• Align the locking screw perpendicularly to the notched side.

• Tighten clockwise until fully secured.

⚠️ Use only factory-standard locking screws.

2. Removal

• Unscrew counterclockwise and remove the tool.

3. Clamp Installation

• Loosen clamp screw, insert the correct clamp fully to the right, and tighten.

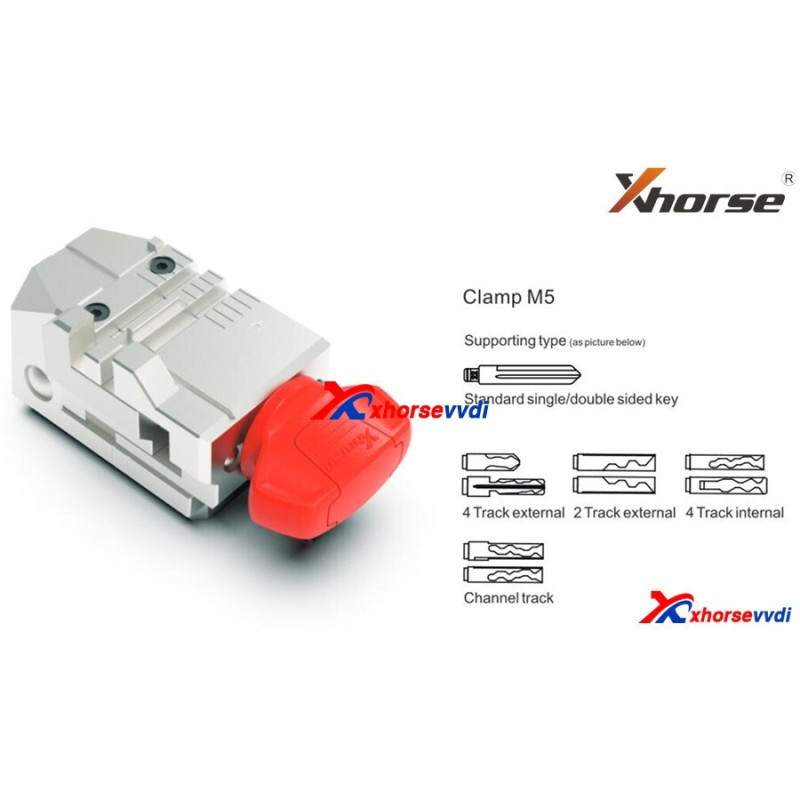

4. M5 Clamp Usage

• Loosen clamp lock knob, slide jaw fully right.

• Rotate clamp body to switch between Side A and Side B.

• Lock again clockwise.
