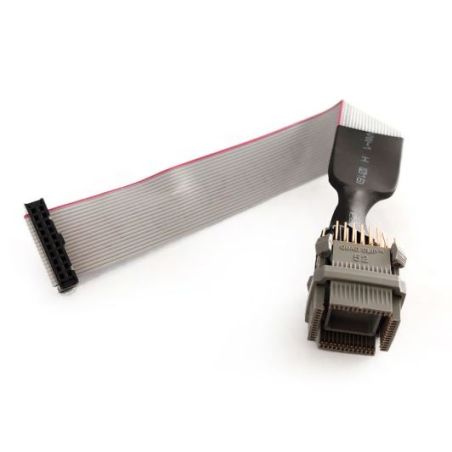

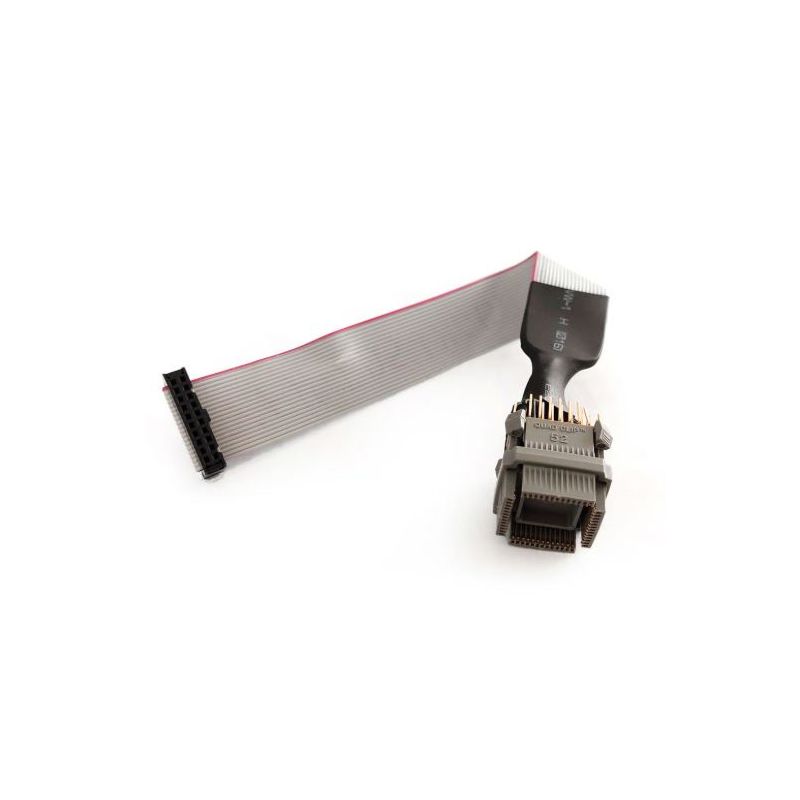

Zed-Full™ ZFH-EA5 52-Pin MCU Test Clip: In-Circuit MCU Reading for BMW™ EWS3 / EWS3+
The Zed-Full™ ZFH-EA5 is a professional 52-pin MCU test clip engineered for reading and extracting data from BMW™ EWS3 and EWS3+ immobilizer systems. It connects directly to the module, allowing true in-circuit reading (in-circuit / on-board reading) without removing the microcontroller, which helps reduce risk, save time, and improve reliability during service operations.
This accessory is ideal for locksmiths, automotive key specialists, and electronics technicians using Zed-FULL™ and dedicated IEA™ connection cables for BMW™ EWS platforms.
Key Benefits
-
No desoldering required: the MCU stays on the board
-
In-circuit reading: faster workflow and increased safety
-
No additional EEPROM reader needed
-
No computer connection required
-
Compatible with BMW™ EWS3 / EWS3+ modules using MCU 11EA9
Technical Compatibility
Supported Microcontrollers (MCU)
-
MC68HC11EA9 (0D46J)
-
MC68HC11EA9 (1D47J)
Supported Modules
Supported Brands and Vehicles
Supported Models
| Brand |
Model |
Years |
Notes |
| BMW™ |
All models |
1999 → 2005 |
EWS / EWS3+ only |
| BMW™ |
X3 |
2003 → 2006 |
- |
| BMW™ |
X5 |
1999 → 2006 |
- |
| BMW™ |
Z3 |
1995 → 2002 |
- |
| BMW™ |
Z4 |
2002 → 2008 |
- |
| BMW™ |
Z8 |
2000 → 2003 |
- |
| Land Rover™ |
All models |
- |
- |
| MINI Cooper™ |
All models |
2002 → 2006 |
EWS / EWS3+ only |
| Range Rover Vogue™ |
- |
2002 → 2006 |
EWS / EWS3+ only |
Product Specifications
-
Type: MCU test clip / test clamp
-
Pins: 52-pin
-
Compatibility: MCU cable (7)05B / MCU 11EA9
-
Manufacturer: IEA™ (Zed-Full™)
-
Condition: New
-
Weight: approx. 40 g
Typical Use Cases
This test clip is ideal for:
-
reading and backing up BMW™ EWS3 / EWS3+ data
-
BMW™ key programming and duplication workflows
-
immobilizer data recovery without advanced board rework
-
fast and secure workshop operations without desoldering
FAQ
Do I need to desolder the MCU to use the ZFH-EA5?
No. The clip is designed for direct in-circuit reading, keeping the MCU on the board.
Is it compatible with all BMW™ vehicles?
It supports a wide range of BMW™ models equipped with EWS/EWS3/EWS3+ systems and compatible 11EA9 MCU versions.
Do I need an EEPROM reader?
No. In most cases, the ZFH-EA5 eliminates the need for an additional EEPROM reader.
Is this an official Zed-Full™ accessory?
Yes. It is an official IEA™ (Zed-Full™) accessory designed for the Zed-FULL™ environment.
Our Keyfirst+ service allows you to access additional content such as demonstration videos and technical information
Would you like to get more information about this product?
