OBDSTAR P001 – Multifunction Programmer for X300 DP / X300 DP Plus / Key Master DP

OBDSTAR P001 multifunction programmer integrates EEPROM Adapter + RFID Adapter + Key Renew Adapter. Compatible with X300 DP, X300 DP Plus, and Key Master DP. Supports EEPROM reading/writing, key simulation (Toyota/Lexus), key renewal, and advanced ECU/MCU programming.

Product Description

The OBDSTAR P001 is a multifunction programmer designed to extend the capabilities of OBDSTAR tablets such as X300 DP, X300 DP Plus, and Key Master DP (Full or Standard versions).
It combines three key modules — an EEPROM adapter, an RFID adapter, and a Key Renew adapter — into one powerful and versatile tool.

The P001 allows professional automotive technicians to simplify complex procedures, support simulated keys, perform EEPROM/MCU operations, and renew or clone keys efficiently.
It also supports simulated smart key generation for Toyota/Lexus "All Keys Lost" cases, saving time and cost during key programming and ECU operations.

Note: The P001 works only with OBDSTAR tablets X300 DP / X300 DP Plus / Key Master DP.
It is not compatible with X100 Pro, X300 Pro3, or other OBDSTAR programmers.
Please provide your tablet serial number when purchasing to ensure activation and compatibility.

Main Features

• Integrated EEPROM + RFID + Key Renew adapters in one unit.

• Read, write, and repair EEPROM / PIC data.

• Perform key renewal and ECU cloning for multiple vehicle types.

• Supports Toyota/Lexus simulated smart key generation (for All Keys Lost situations).

• Read pincode for specific models (e.g., GM Epica, Honda, Yamaha, Suzuki).

• Equipped with dual RFID coils for stronger and more stable signal coverage.

• Supports a wider frequency range than traditional RFID adapters.

Supported Vehicle Functions (examples)

• Fiat / Alfa Romeo / Lancia / Iveco / Abarth / Ferrari – Make dealer keys

• VW / Audi / Seat / Skoda / Bentley / Lamborghini – Make dealer keys

• Renault / Dacia / Lada / Smart – Make dealer keys (with OBDSTAR Renault Converter)

• Toyota / Lexus – Simulated keys (types 94/D4, 98, 88/A8, A9, etc.)

• Subaru – Simulated keys (78/F1)

• BMW – Simulated key generation

• Land Rover / Jaguar – Simulated key generation

• Motorcycles – Honda, Suzuki, Yamaha, Piaggio, Vespa, Aprilia, Moto Guzzi, Gilera, Derbi, Peugeot, Italjet – Key copying and pincode reading

• Commercial and industrial vehicles – selected ECU compatibility

Toyota Simulated Smart Key Overview

Why use a Toyota simulated smart key?

For Toyota/Lexus models (2007–2016), if all smart keys are lost, the instrument cluster must be removed, and the ECU replaced — an expensive process.
The simulated key allows ignition activation, enabling new smart key programming without replacing ECU components.

Benefits

• Significant cost savings

• Reusable simulated keys

• Simple and fast solution for “All Keys Lost” cases

Available simulated key types

1. Type 1 – For 94/D4 smart key systems

2. Type 2 – For 98 smart key systems

3. Type 3 – For 88/A8 smart key systems

4. Type 4 – For A9 smart key systems
   (A 5th type is under development)

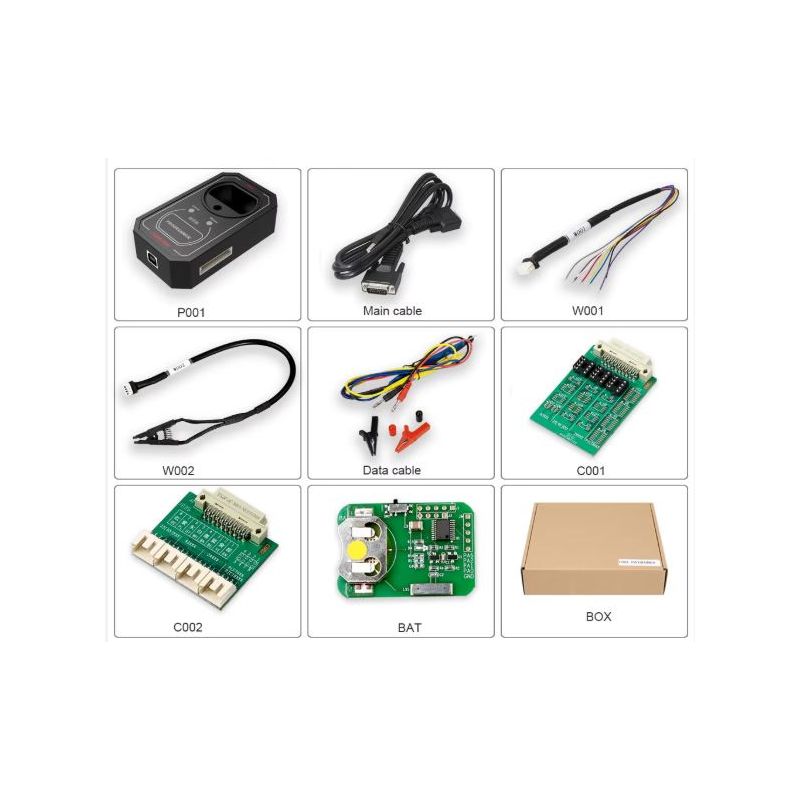

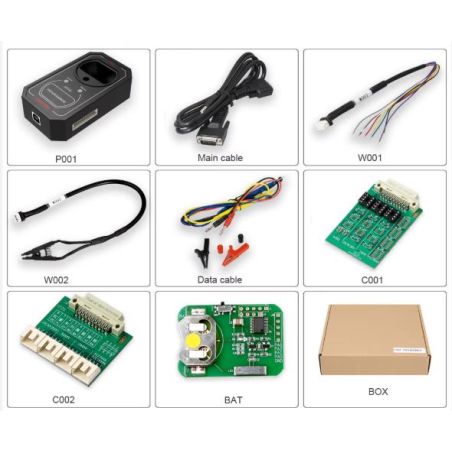

Accessories Included (with functions)

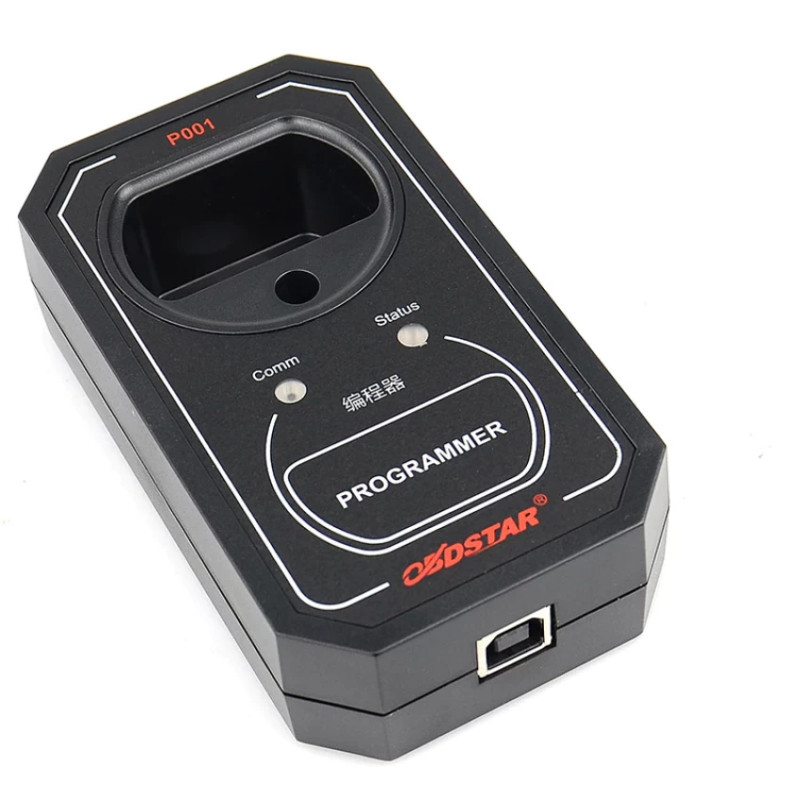

• P001 Programming Unit – Main multifunction programmer

• C001 Circuit Board – Compatible with old boards #3/#4; used for EEPROM chip removal and reading, Tianjin FAW & VIZHI immobilizer coil initialization, and more

• C002 Circuit Board – New board allowing W001/W002/W003 cable connection; supports solder-free chip reading

• W001 Data Cable – Reads/writes via direct wire connection (manual soldering)

• W002 Data Cable – Reads/writes by directly clamping SOP8 chips (no soldering required)

• W003 Data Cable – Reads/writes using red/black clips for power and yellow/blue probes for data points

Wiring Instructions

The tablet interface (X300 DP / DP Plus / Key Master DP) includes step-by-step wiring diagrams for each cable (W001, W002, W003).
Always follow safety and ESD precautions when handling circuit boards or connecting test points.

Package Includes (Full Set)

• 1 × OBDSTAR P001 Programmer Unit

• 1 × C001 Circuit Board

• 1 × C002 Circuit Board

• 1 × W003 Data Cable
  (Note: Depending on version, W001 and W002 cables may also be included.)

Compatibility

Works exclusively with:

• OBDSTAR X300 DP (Full/Standard)

• OBDSTAR X300 DP Plus (Full/Standard)

• OBDSTAR Key Master DP (Full/Standard)

Safety & Technical Notes

• Provide your tablet serial number when purchasing to enable pairing.

• Not compatible with X100 Pro, X300 Pro3, or other programmers.

• Proper training in ECU/EEPROM manipulation is recommended for safe use.
