FBS3 KIT | Key Programming & ECU Tool for Mercedes™ G3 Obdstar

Product Description

The BENZ FBS3 KIT is an essential professional tool for PIN code reading, ECU reset, and key programming.

⚠️ Important: The kit must be used with the KEYMASTER G3 tablet and the MP001 programmer, both updated to the latest software version to ensure full compatibility and optimal performance.

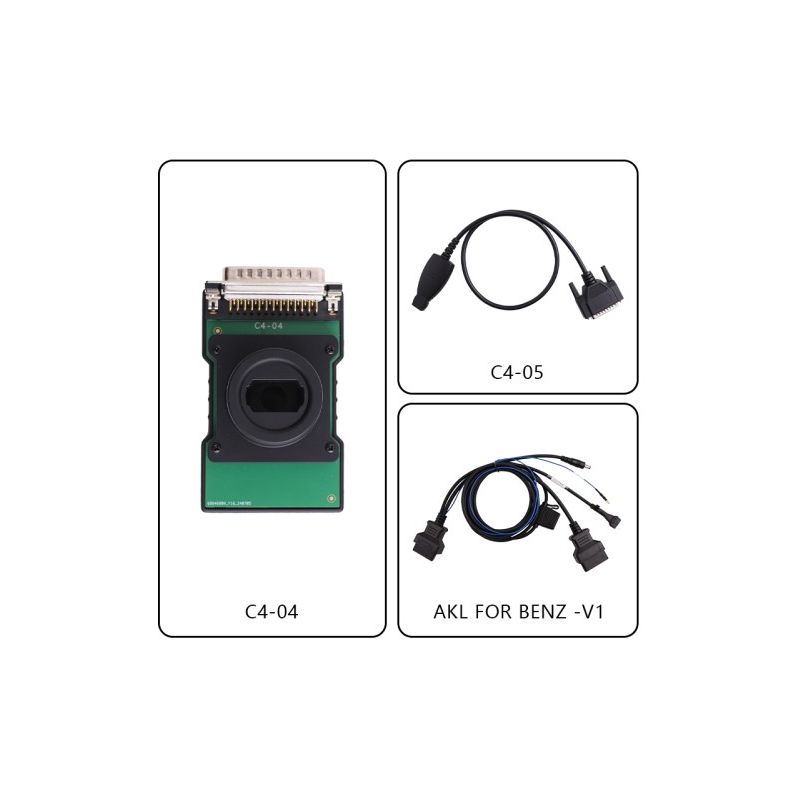

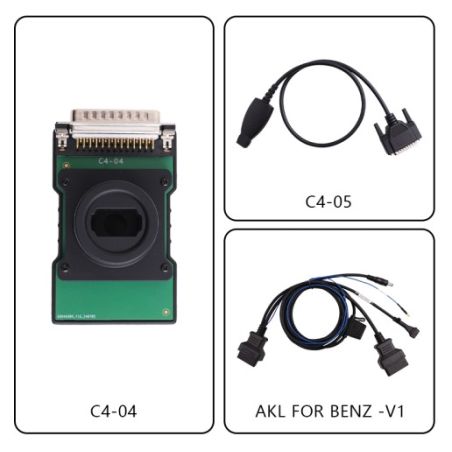

Included Accessories

• AKL FOR BENZ -V1: dedicated cable for in-vehicle data collection

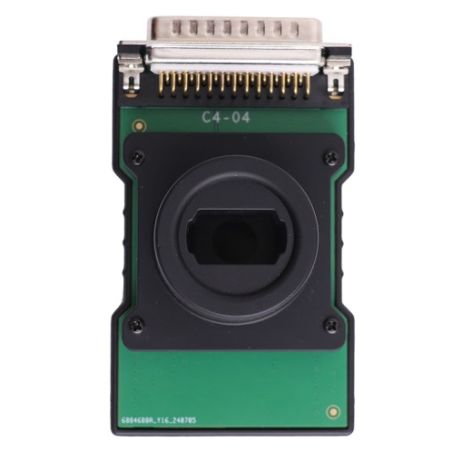

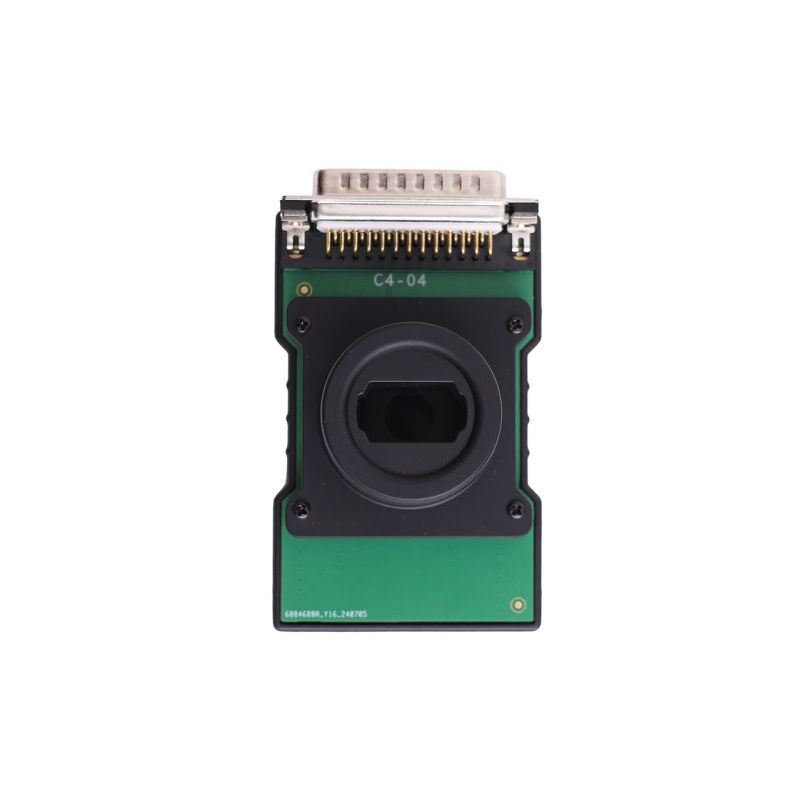

• C4-04: module for key data collection

• C4-05: module for EIS data collection

Supported Functions

1. PIN Code Reading & Calculation

• Read PIN code

• Calculate PIN code by working key

• Calculate PIN code in AKL mode (All Keys Lost)

• Read BE key PIN code

2. ECU Reset & Programming (Virgin / Reset)

• EIS (Electronic Ignition Switch)

• ECM (Engine Control Module)

• TCM (Transmission Control Module)

• ISM (Intelligent Servo Module)

• ELV (Electronic Steering Lock)

3. Key Programming

• Read key data

• Generate key file

• Erase BE key

• Write BE key

Supported Models (Chassis)

The kit is compatible with a wide range of Mercedes™ FBS3 models, including:

• A-Class (W169), B-Class (W246), C-Class (W204, W203, W209), CL-Class (W215, W216), CLK-Class (W209)

• CLS-Class (W207, W210, W218), E-Class (W211, W212), G-Class (W463)

• GL-Class (W164, W166), GLK-Class (W204, W208), GLS-Class (W166)

• ML-Class (W164, W166), S-Class (W220, W221), SLC-Class (W197), SLK-Class (W172), SLS-Class (W197)

FAQ

Q: Which models support AKL and which do not?
A: All models in the support list support AKL programming, except W463 / W215(K) / W220(K) which only support Add Keys.

Q: Do I need to remove the EIS for All Keys Lost key programming?
A: Models W203, W208, W209, W210, W639 require EIS removal. Other models in the list support on-board operation.

Q: Does the BENZ FBS3 KIT require binding with another device?
A: No, the BENZ FBS3 KIT can be used without binding to any device.

(The Mercedes™ brand is mentioned for reference purposes only; the products presented are not affiliated with the manufacturer.)
