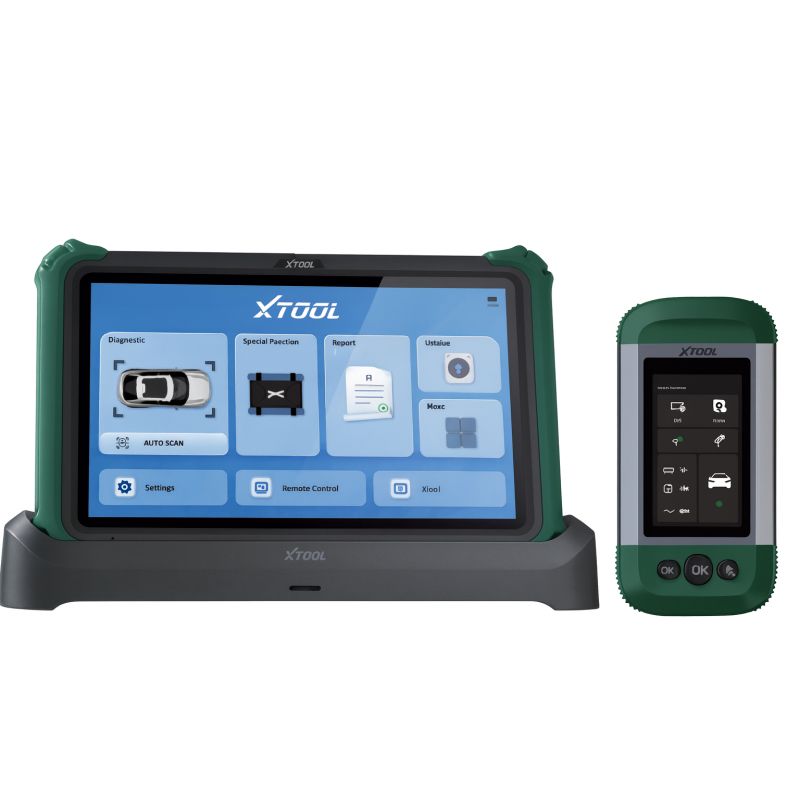

XTOOL PRODIGY – Flagship Smart Diagnosis System
Overview
The XTOOL PRODIGY is a flagship smart diagnostic system designed for automotive professionals. Supporting more than 70 brands and 5,000 models (electric, gasoline, and hybrid vehicles), it features a 13.3-inch HD touchscreen, Android 10.0, a powerful Octa-core 2.2 GHz + 1.8 GHz processor, and advanced protocols including DoIP / CANFD / J2534.
With its built-in database powered by Autodata, PRODIGY provides fast diagnostics, advanced ECU programming, ADAS calibration, and detailed PreSCAN / PostSCAN reporting. Delivered with 3 years of free software updates, it ensures long-term coverage and reliability for multi-brand workshops.
Key Features
-
Integrated Autodata access for online technical information.
-
13.3" HD touchscreen (1920×1080) for clear visibility.
-
8 GB RAM + 256 GB ROM for fast and smooth performance.
-
Dual Wi-Fi modules for simultaneous Internet and VCI connection (range up to 10 m).
-
9600 mAh long-life battery for extended diagnostic sessions.
-
Built-in 13 MP rear camera for high-resolution images.
-
Full support for protocols: DoIP, CANFD, SAE J2534, UDS, OBDII.
-
Advanced Tesla diagnostics with access to special functions.
-
Online ECU programming and coding for VAG, BMW, and Mercedes-Benz.
-
Offline programming for Ford, Lincoln, and Mazda.
-
ADAS calibration for cameras and radars.
-
PreSCAN and PostSCAN reporting for professional documentation.
-
Wireless charging dock included.
-
AutoAuth™ FCA SGW integration.
-
Three years of free software updates included.
Special Functions (examples among 50+)
-
Reset functions: BMS, DPF, Oil, ABS, Airbag, NOx, EGR.
-
Calibrations: injectors, seats, headlights, windows, sunroof, sensors.
-
Adaptations: gearbox, clutch, EPS, steering.
-
ECU functions: VIN writing, ECU coding, turbo relearn.
-
ADAS calibration for radar and camera systems.
-
Advanced tests: EVAP, fuel pump, glow plugs, high-voltage battery.
Vehicle Coverage
The XTOOL PRODIGY supports over 70 international brands, including:
Tesla, BMW, Mercedes-Benz, Audi, Volkswagen, Ford (US & EU), Renault, Peugeot, Citroën, Toyota, Nissan, Honda, Hyundai, Kia, Jaguar, Land Rover, Porsche, Maserati, Ferrari, Volvo, Alfa Romeo, Fiat, Opel, Skoda, Seat, Jeep, Chrysler, Dodge, Cadillac, Chevrolet, GMC, Buick, Subaru, Suzuki, Lexus, Infiniti, Acura, Bugatti, Lamborghini, Rolls Royce, Bentley, and more.
Technical Specifications
-
Operating System: Android 10.0
-
Processor: Octa-core 2.2 GHz + 1.8 GHz
-
Memory: 8 GB RAM + 256 GB ROM
-
Display: 13.3" HD (1920×1080)
-
Battery: 9600 mAh, 7.2V
-
Camera: 13 MP rear
-
VCI Communication: Wi-Fi / Wired (USB-C)
-
Supported Protocols: DoIP, CANFD, UDS, OBDII, J2534, SAE J1939, SAE J1708, SAE J1850, K-Line, L-Line
-
Operating Temperature: 0°C to 40°C
Package Contents
FAQ – XTOOL PRODIGY
Is XTOOL PRODIGY compatible with Tesla vehicles?
Yes. PRODIGY supports full diagnostics for Tesla vehicles, including data access, topology mapping, and special functions.
Which brands and models are supported?
More than 70 brands and 5,000 models are covered, including Tesla, BMW, Mercedes-Benz, Renault, Peugeot, Toyota, Ford, Porsche, Maserati, Ferrari, Audi, and many more.
Are software updates included?
Yes. Three years of free updates are included, ensuring continuous compatibility with the latest vehicle models and protocols.
Can PRODIGY be used without Internet access?
Yes. Functions such as offline programming (Ford, Lincoln, Mazda) are available without an Internet connection. However, online coding and advanced functions require connectivity.
Is it suitable for multi-brand workshops?
Yes. It is designed for professional garages, offering universal diagnostics, ADAS calibration, numerous special functions, and detailed PreSCAN/PostSCAN reports to increase productivity and accuracy.
Is the VCI module included?
Yes. The wireless VCI module is included, with a stable communication range of up to 10 meters.
