Xhorse | Condor XC-002 | Demonstration Machine for Cutting Laser and Dimple Keys

Xhorse | CONDOR XC-002 | Mechanical Key Cutting Machine

📝 General Description

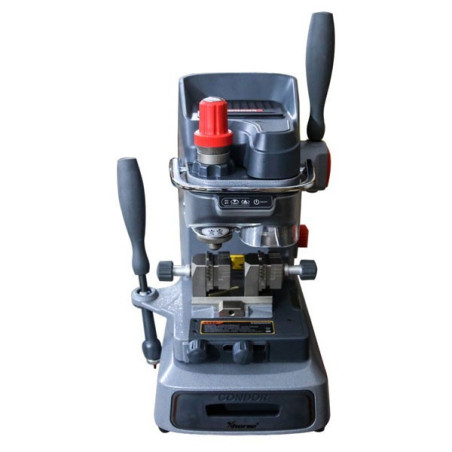

The Xhorse Condor XC-002 is a professional mechanical key cutting machine designed to deliver reliability, performance, and ergonomics for locksmiths and workshops. With its high-strength die-cast aluminum chassis and precision components, it ensures ultra-accurate duplication of laser keys, dimple keys, channel track keys, and other complex profiles.

Equipped with a minimalist streamlined design, ergonomic handle, patented 4-in-1 rotating clamp, and a powerful 200W motor reaching 10,000 rpm, the XC-002 combines robustness, ease of use, and versatility.

⚙️ Key Features

• Streamlined minimalistic design with compact structure.

• Ultra-strength aluminum die-cast chassis for enhanced stability.

• Ergonomic handle for maximum comfort in operation.

• Patented 4-in-1 rotating clamp compatible with multiple key types.

• Smooth rail guidance with precision bearings.

• Modular components for easy disassembly and maintenance.

• Main components manufactured by German DMG CNC machines for exceptional accuracy.

✅ Advantages of Condor XC-002

Ergonomic Design

The XC-002 was developed after in-depth research on user habits: materials, handle length and curvature, grip comfort, control strength, feedback level, and operation smoothness. The result is an optimal balance between comfort and performance.

Superior Machine Components

• Main structure made in Korea with a high-stability bearing system.

• Renishaw UK online testing system ensures continuous accuracy.

• Japanese-made cutters with specialized coating for extended service life.

Humanized Functions

• Built-in light indicator for easy probe and cutter height adjustment.

• Manual spindle speed control, adaptable to different key blank materials.

• Dual-ended probe included, supporting track, dimple, and other special keys.

Precision Manufacturing

• Die-cast aluminum body (heat-treated) for maximum reliability.

• Critical components manufactured by German DMG CNC machines, ensuring unmatched structural accuracy.

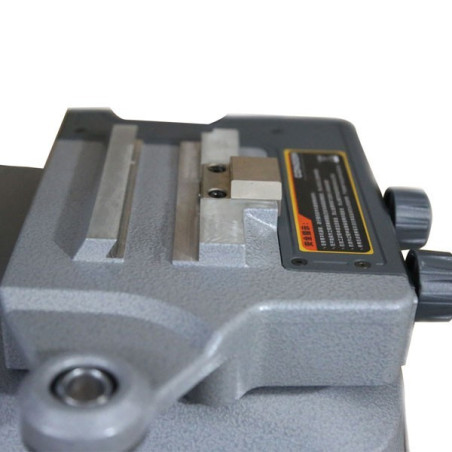

Innovative 4-in-1 Clamp

• Independent patented 4-sided rotating clamp design, supporting multiple key blanks (single-sided, double-sided, dimple, channel, etc.).

• Quick and easy rotation of clamp sides for efficient cutting of different keys.

Motor Power

• Powerful 200W motor reaching up to 10,000 rpm.

• Adjustable speed to match key material, ensuring high efficiency and durability.

Technical Support & Warranty

• Free lifetime online technical support via the Xhorse app.

• 2-year warranty with comprehensive after-sales service.

📊 Technical Specifications

• Input Voltage: 220V AC

• Input Frequency: 50Hz

• Power Consumption: 200W

• Package Dimensions: L595 × W550 × H375 mm

• Machine Dimensions: L298 × W445 × H525 mm

• Spindle Speed: 8,000 – 10,000 rpm

• Noise Level: 77 dB

• Operating Temperature: 0 – 50 °C

• Humidity: 10 – 90%

• Net Weight: 23 kg

• Gross Weight: 28 kg

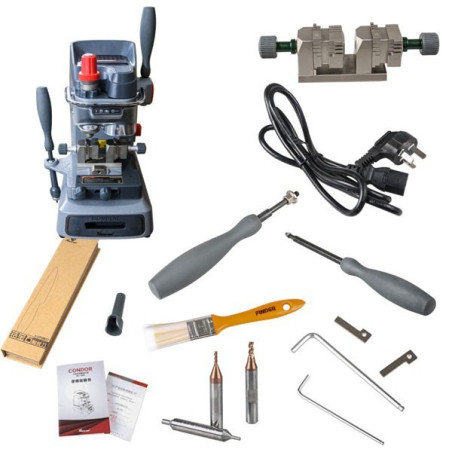

📦 Package Contents

• 1 × Xhorse Condor XC-002 main unit

• 1 × Patented 4-in-1 rotating clamp

• 1 × 1.5 mm cutter

• 1 × 2.5 mm cutter

• 1 × Dual-ended probe

• 1 × Power cord

• 1 × User manual

❓ FAQ – Frequently Asked Questions

Q: Which types of keys can the Condor XC-002 cut?
A: It supports laser keys, dimple keys, channel track keys, single-sided, double-sided, and other special profiles.

Q: Is the machine easy to maintain?
A: Yes, its modular design allows quick disassembly and simple maintenance.

Q: What is the maximum spindle speed?
A: Up to 10,000 rpm, adjustable according to key material.

Q: What is the warranty period?
A: The Condor XC-002 comes with a 2-year warranty plus free lifetime online support.

Q: Is this machine suitable for professional locksmiths?
A: Absolutely. It is built for heavy-duty use, providing robustness, precision, and reliability.
