XHORSE - CONDOR XC MINI PLUS 2 - Electronic Key Cutting Machine for Residential and Automotive Keys

Xhorse Condor XC-Mini Plus II — 2nd Generation Condor Mini Key Cutting Machine for Car, Motorcycle & Household Keys

Xhorse Condor XC-Mini Plus II (2022) is the second generation of the Xhorse Condor XC-Mini Plus 2020 automatic key cutting machine. Driven by AI technology and an 8-core processor, it delivers performance superior to the previous edition.

The Condor XC-Mini Plus II quickly and accurately identifies nearly all car keys, motorcycle keys, plastic keys and aluminum keys when connected to a key reader. It maintains excellent performance even in extreme weather conditions. With the Condor XC-Mini Plus II, users receive a work of craftsmanship rather than an ordinary duplication result. It doesn’t merely complete duplication — it achieves high-end results while offering robust capabilities.

The Condor XC-Mini Plus II can produce extremely high-precision machining results. Finished keys pass advanced optical instrument precision tests. The machine can maintain high-precision results even after cutting more than 150,000 keys.

Highlights

• 7" HD touchscreen

• Bluetooth and Wi-Fi support

• Powered by Android OS

• 8-core processor

• Intelligent status indicator light

• Adjustable-angle LCD touchscreen

• Supplied as standard with two clamps: M3 and M5

• Blank key engraving (design a unique blank key)

• Household key cutting

• Optical key recognition (works with Key Reader)

• 3D key preview

• High-precision ball screws

• High-rigidity crossbeam

• Cutter and probe operate in parallel

• Supports vehicle, motorcycle, residential keys (single-face / track / Tibbe / dimple)

• Update software, app, database and firmware directly on the machine (update guide included)

• 3-year warranty

Free Download: Xhorse Condor 2 APK

Features

8-Core Processor

With an 8-core processor, the Condor XC-Mini Plus II delivers rapid response, faster operating speed and high resolution.

Intelligent Color Synchronization

This intelligent indicator, built from advanced LED chips and a diffuser, automatically synchronizes color with real-time operating states. It ensures a stable light source, provides smart status indication with flicker-free illumination and offers long service life.

Indicator meanings:

• Red light — error warning

• Blue light — normal operation

• Yellow light — information notification

Smart M5 2-in-1 Clamp & Multi-use Clamps

The Condor XC-Mini Plus II comes with M5 and M3 clamps as standard; M1, M2 and M4 clamps are optional. The multifunction clamps support a variety of key types such as side-cut, rail, Tibbe, F021 and Citroen SX9, residential keys, and more.

M5 is a 2-in-1 clamp combining M1 and M2 functions: it supports 2 external tracks, channel track, single standard face, 4 external tracks, 4 internal tracks, double standard face and dimple key types. It’s convenient to switch directly between M1 and M2 modes without repeatedly installing or removing clamps.

Smart Android User Interaction

Powered by Android, the machine offers enhanced compatibility, faster operation and smarter user interaction. Quick and efficient solutions help you handle all types of lost key scenarios.

2-in-1 Decoding Tool

Decode using the 2-in-1 tool or other professional tools. Enter the biting code, then tap “Start Cut” on the screen.

Lost-Key Database

The powerful built-in database covers over 100 car brands, 2,000 car models and 20,000 keys. All “Key Lost” data is included with free lifetime upgrades.

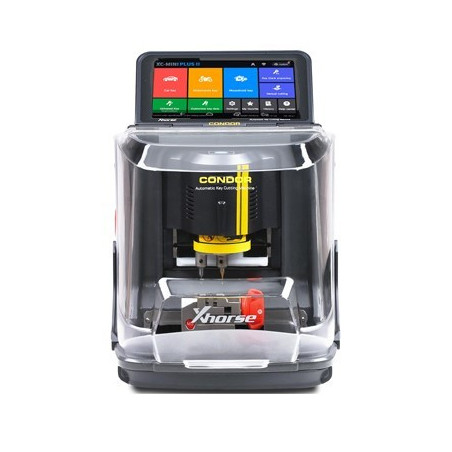

7" Smart Touchscreen Display

With a 1280 × 720 resolution on a 7-inch display, the screen provides superior image quality to minimize eye strain. The machine uses a capacitive touchscreen with adjustable angle so you can set the display to the most comfortable position.

Smart Control Experience

Users can perform operations easily on the clear screen with step-by-step instructions. The large built-in database contains accurate key data, detailed parameters and clear key diagrams. Users can edit key data directly on screen to complete key duplication.

Support for Multiple Key Types

Supports automotive, motorcycle, residential and other common key types.

Offline Operation Available

Free lifetime database updates are provided online. For poor network environments, offline operation is available after downloading the database.

Blank Key Engraving

Have many blanks and need a unique design? The blank key engraving function allows users to add/remove text and images, resize and rotate them — perfect for creating a unique key design.

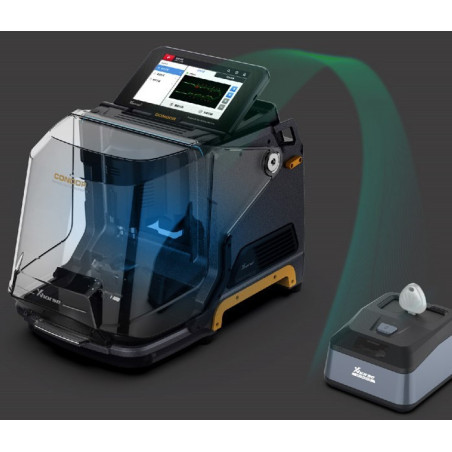

Optical Key Recognition

Capable of rapidly and accurately recognizing nearly all car, motorcycle, plastic and aluminum keys when connected to a key reader.

Smarter App Control

Meet diverse user needs via the Xhorse app. Connect the machine to the Xhorse app for extended functions: take photos to recognize biting, preview the key in 3D, cut by biting, find the biting, customize key data, etc. Take or import a photo to recognize key biting.

3D Key Preview

Preview the target key’s 3D shape before cutting to greatly reduce wasted blanks.

Customize Key Data

Enter custom key parameters to support machining latest key types and those not covered by the built-in database. Xhorse’s independently developed “custom key data” function lets you manually choose the key type, enter the key data and synchronize it with the machine to complete the cutting process.

Precision Manufacturing

Full aluminum body structure; manufactured on German DMG CNC machines to ensure high-precision cutting results. Finished keys have passed strict optical instrument testing. The transparent shield allows real-time viewing while preventing metal debris splash.

Free Lifetime Online Technical Support

Xhorse provides a 3-year warranty for the Condor XC-Mini Plus II. Technical videos and articles are available on the Xhorse APP to assist you. Tap “Customer Service” in the Xhorse app to contact Xhorse technical support.

Product Specifications

• Power: 200 W

• LED Screen Resolution: 1280 × 720 pixels

• Motor Rotation Speed: 10,000 rpm

• Package Dimensions: 515 × 480 × 380 mm

• Product Dimensions: 413 × 250 × 300 mm

• Input Frequency: 47–63 Hz

• Input Voltage: 90–264 V

• Net Weight: 19 kg

• Gross Weight: 24 kg

• USB Port: DB15

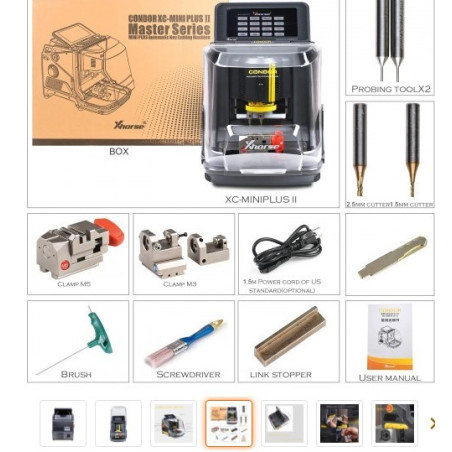

Package Includes

• 2 × Probing tool

• 1 × 1.5 mm cutter

• 1 × 2.5 mm cutter

• 1 × Clamp M5

• 1 × Clamp M3

• 1 × 1.5 m power cord (US standard — optional)

• 1 × Brush

• 1 × Screwdriver

• 1 × Key blank

• 1 × Link stopper

• 1 × User manual
